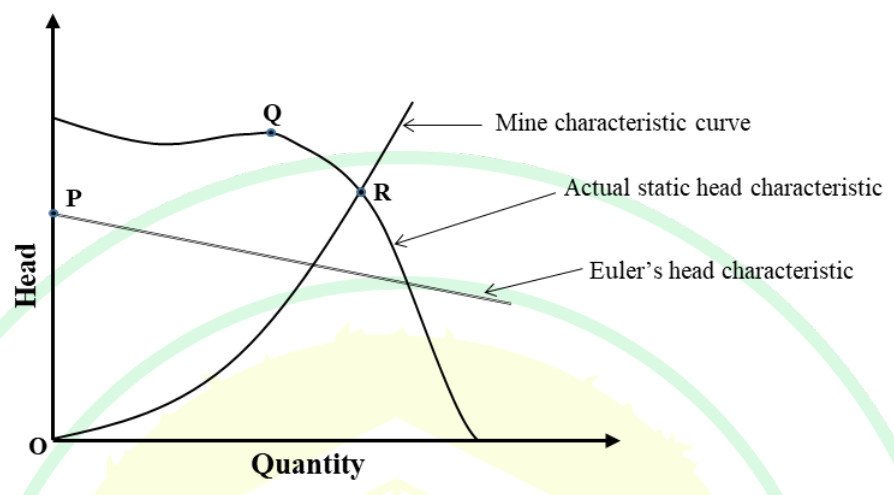

P lies at zero quantity on the theoretical fan curve and indicates theoretical shut-off head. Q is the stall region/point on the characteristic. R is the intersection of fan and mine curves, the operating point. Thus P–3,Q–1,R–2, C.
More Mine Ventilation questions
GATE 2025 MN Q32– Airways of resistance4.0,6.25 and9.0 N s²/m⁸ are in parallel. Find equivalent resistance…
GATE 2025 MN Q40– The airway is a rectangle topped by a semicircle of radius r. Its full perimeter is20 m…
GATE 2025 MN Q61– Air flows at1.2 m/s through a900 m road of height2.5 m and width3 m. Friction coefficient…
GATE 2024 MN Q13– An airway 2.0 m wide and 2.5 m high turns throughπ/4 radians with 4.0 m bend radius. Find…
GATE 2024 MN Q37– Four identical districts have total flow 3500 m³/min at stated fan-drift pressure 1.15…
GATE 2024 MN Q50– A 2×2.5 m face in a 1000 m drive uses 20 kg explosive producing 2200 cm³ fumes/kg. The…
