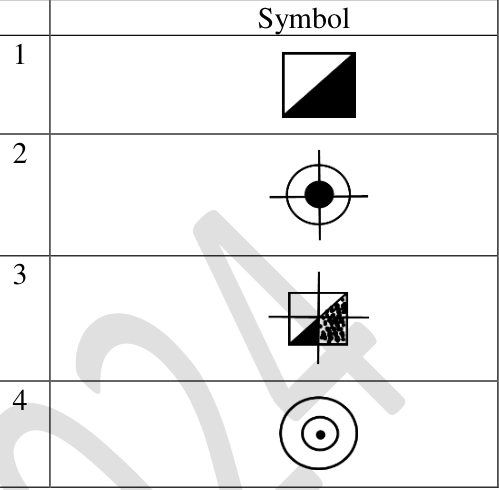

The conventional shaft symbol is the concentric-circle form 4, and the staple shaft uses the diagonally divided square 1. The abandoned versions add the corresponding closure/cross marking:shaft 2 and staple shaft 3. Therefore P–4, Q–1, R–2, S–3, D.
