Geomechanics and Ground Control · Ground Control · 2 marks · Multiple choice

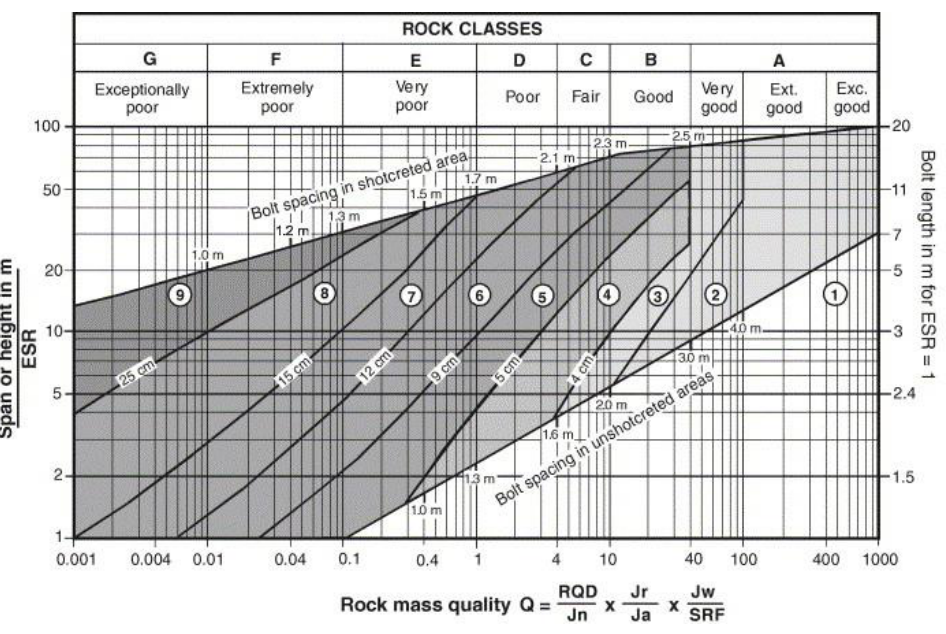

An 8 m diameter tunnel has rock-mass quality Q = 1.0 and excavation support ratio ESR = 1.0. Using the supplied Grimstad–Barton (1993) chart, choose the tunnel-wall fibre-reinforced shotcrete and bolt requirement.
Correct answer: (C) Shotcrete 5–9 cm; bolts 2.7–2.8 m
Explanation
Equivalent dimension is diameter/ESR = 8. For wall support in the intermediate Q range, use the wall-adjusted rock quality, 2.5Q = 2.5. Plot this against equivalent dimension 8 on the supplied chart: the fibre-reinforced shotcrete band is 5–9 cm, and the right-hand bolt-length scale reads about 2.7–2.8 m. Hence C. Treating this as an unadjusted roof-support point selects an unnecessarily heavier band.
