Home › Previous year questions › GATE 2024 AR — Architecture › Question 51GATE 2024 AR — Architecture – Question 51 Building Services · Air-Conditioning systems · 1 mark · Multiple choice

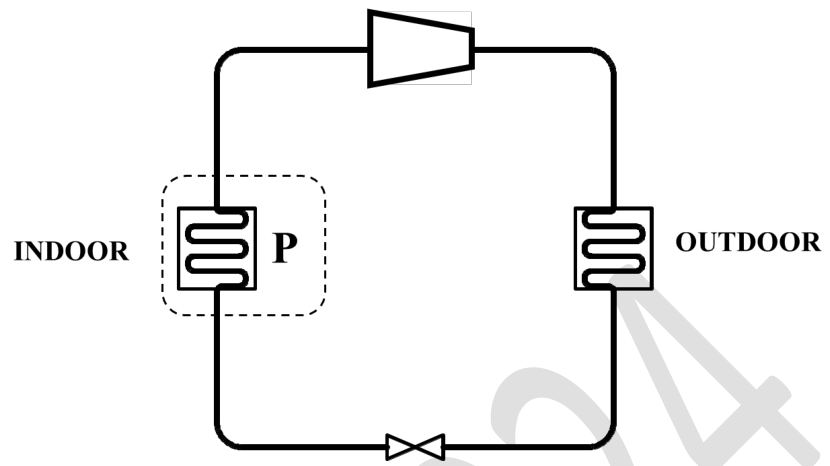

In the cooling-mode unitary air-conditioner diagram, what is component P?
Condenser Evaporator Compressor Expansion valve Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (B) Evaporator
Explanation P is the indoor heat exchanger. In cooling mode it absorbs room heat while the refrigerant evaporates, so it is the evaporator, B. The outdoor heat exchanger rejects heat as a condenser; the compressor and expansion device occupy the other labelled circuit positions.
