GATE 2022 AR — Planning – Question 42

Building Services · Air-Conditioning systems · 2 marks · Multiple select

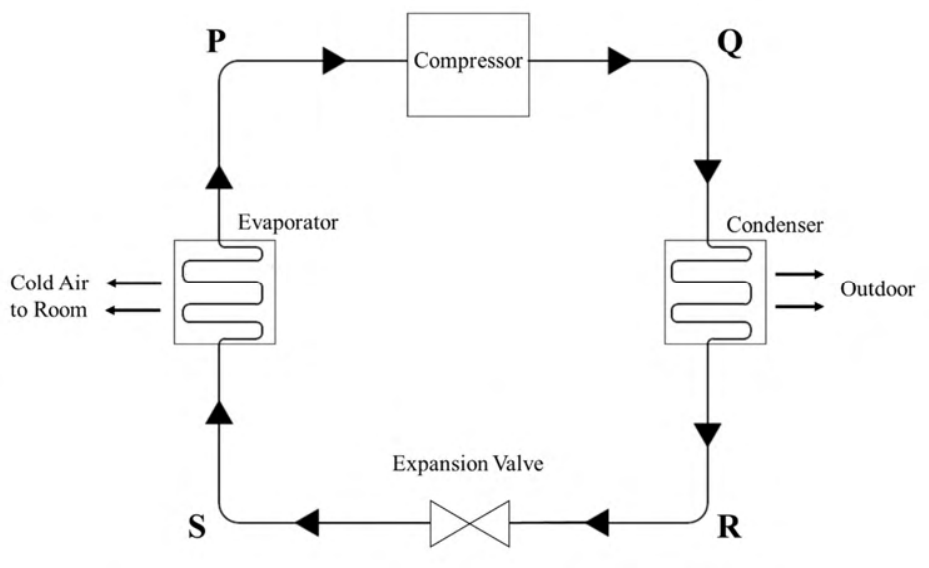

For the ideal vapour-compression air-conditioning cycle shown, which statements about labelled segments are true?

Diagram for GATE 2022 AR — Planning question 42
  1. P: vapour at low pressure
  2. Q: vapour at low pressure
  3. R: liquid at high pressure
  4. S: liquid-vapour mixture at low pressure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) P: vapour at low pressure; (C) R: liquid at high pressure; (D) S: liquid-vapour mixture at low pressure

Explanation

P is the low-pressure vapour entering the compressor (A). Compression raises pressure, so Q is high-pressure vapour and B is false. Condensation produces high-pressure liquid at R (C); expansion gives a low-pressure two-phase mixture at S (D). Select A, C, D.
