GATE 2024 AR — Architecture – Question 59

Building Construction, Materials, and Structural Systems · Building materials characteristics & applications · 2 marks · Multiple choice

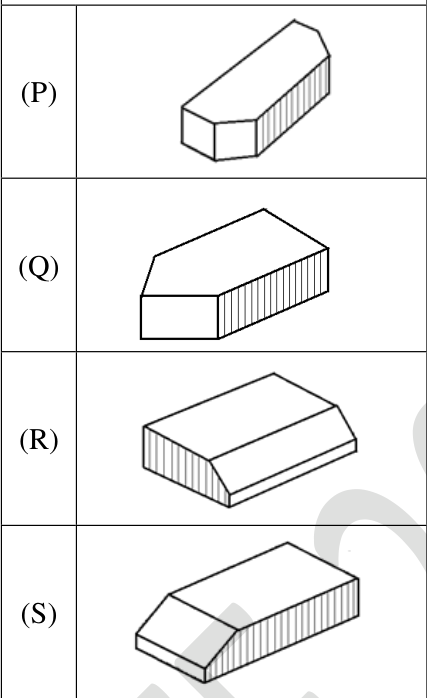

Match shaped bricks P–S with 1 plinth header, 2 bird’s mouth, 3 squint, 4 double cant, 5 plinth stretcher.

Diagram for GATE 2024 AR — Architecture question 59

P–4; Q–3; R–5; S–1
P–3; Q–2; R–4; S–1
P–4; Q–3; R–5; S–2
P–4; Q–1; R–2; S–5

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) P–4; Q–3; R–5; S–1

Explanation

P has two canted corners and is double cant(4). Q changes the plan angle and is a squint(3). R provides the sloped profile along the stretcher face(5); S provides it at the header end(1). Hence A. Bird’s-mouth bricks instead have a re-entrant angular notch.
