GATE 2021 EE – Question 64

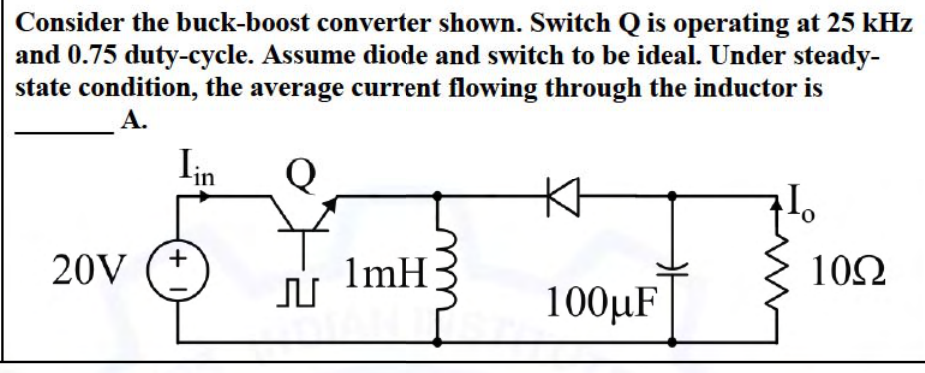

Consider the buck-boost converter shown. Switch Q is operating at 25 kHz and 0.75 duty-cycle. Assume diode and switch to be ideal. Under steady-state condition, the average current flowing through the inductor is ________ A.

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 24
Explanation
For the buck-boost converter $|V_o|=\frac{D}{1-D}V_{in}=3\times20=60$ V, so $I_o=\frac{60}{10}=6$ A. The diode carries the load current only during the off-time, so $I_o=(1-D)I_L$ and $I_L=\frac{6}{0.25}=24$ A.
