GATE 2019 EC – Question 52

Control Systems · Bode and Root-Locus Plots · 2 marks · Numerical answer

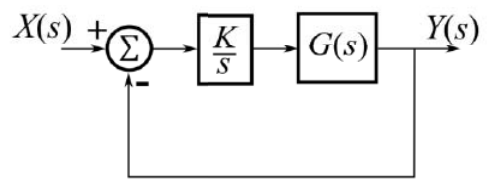

Consider a unity feedback system, as in the figure shown, with an integral compensator $\frac Ks$ and open-loop transfer function

$$G(s)=\frac{1}{s^2+3s+2}$$

where $K>0$. The positive value of $K$ for which there are exactly two poles of the unity feedback system on the $j\omega$ axis is equal to ________ (rounded off to two decimal places).

Diagram for GATE 2019 EC question 52

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 6

Explanation

Closed-loop characteristic equation: $1+\dfrac K{s(s^2+3s+2)}=0$, i.e. $s^3+3s^2+2s+K=0$.

Routh array:

rowentries
$s^3$1, 2
$s^2$3, $K$
$s^1$$\dfrac{6-K}3$
$s^0$$K$

Poles lie on the $j\omega$ axis when the $s^1$ entry is zero (the system is marginally stable), so $K=6$. The auxiliary equation $3s^2+6=0$ gives the pair $s=\pm j\sqrt2$.
