GATE 2018 EC – Question 46

Networks, Signals and Systems · Time and Frequency Domain Analysis of Linear Circuits · 2 marks · Numerical answer

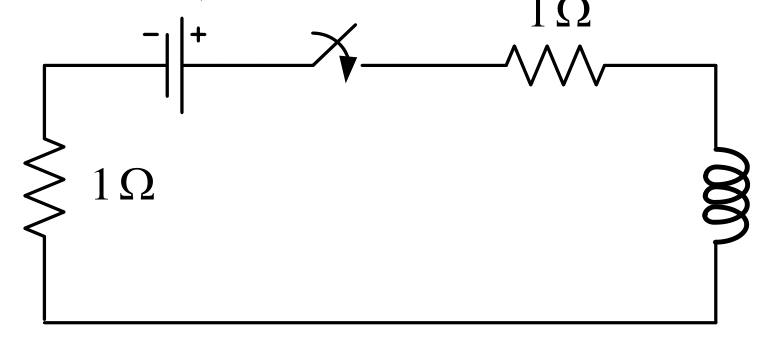

For the circuit given in the figure, the magnitude of the loop current (in amperes, correct to three decimal places) 0.5 second after closing the switch is ________.

Diagram for GATE 2018 EC question 46

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.31 to 0.33

Explanation

After the switch closes the circuit is an $RL$ circuit driven by 1 V, so the current rises as $i(t)=\dfrac VR\left(1-e^{-t/\tau}\right)$ with $\tau=L/R$.

With total series resistance $R=2\ \Omega$ and $L=1$ H, $\tau=0.5$ s and the final current is $V/R=0.5$ A:

$i(0.5)=0.5\left(1-e^{-1}\right)=0.5\times0.632=0.316$ A.
