GATE 2018 EC – Question 52

Control Systems · Routh-Hurwitz and Nyquist Stability Criteria · 2 marks · Numerical answer

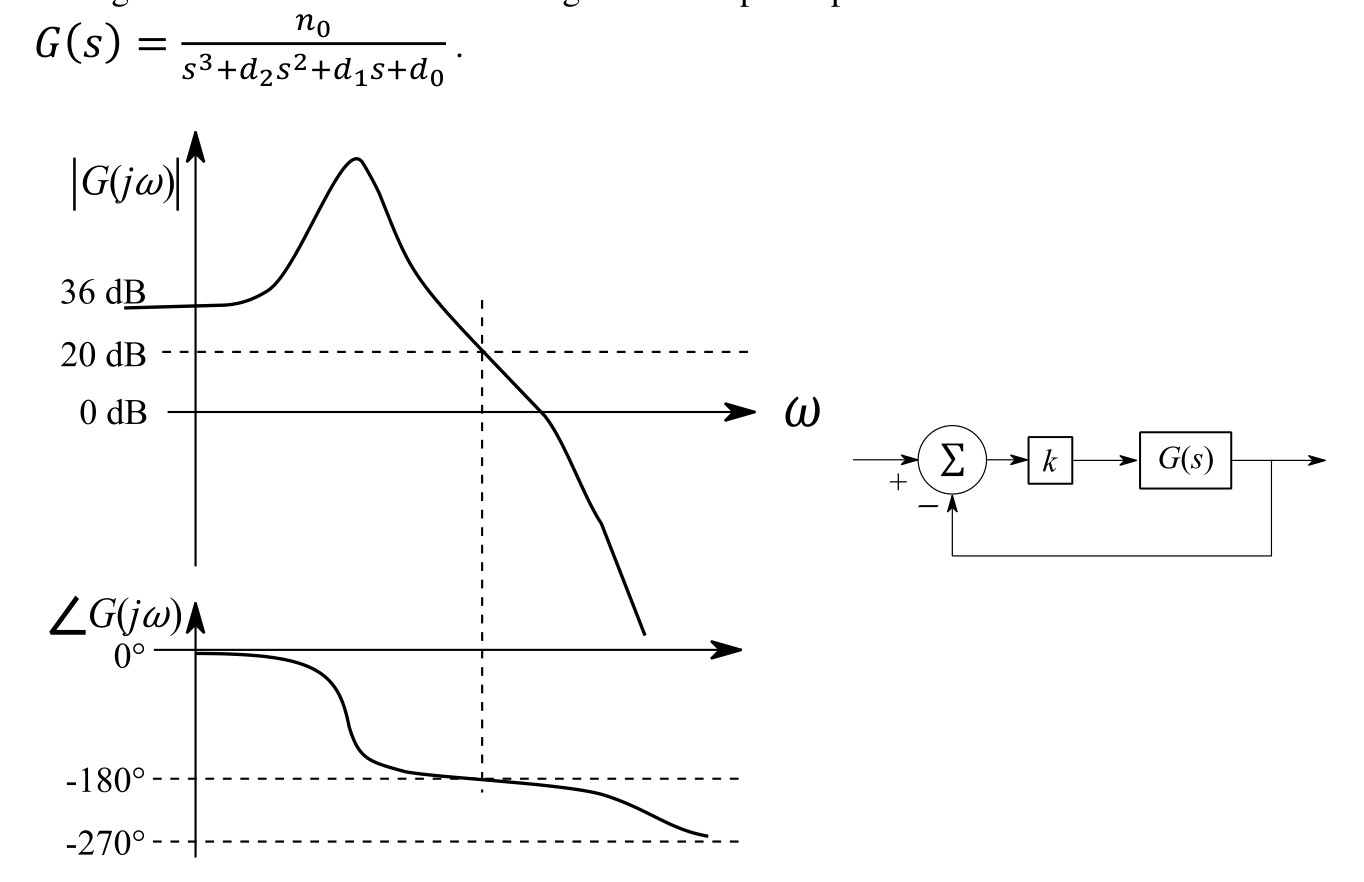

The figure below shows the Bode magnitude and phase plots of a stable transfer function $G(s)=\dfrac{n_0}{s^3+d_2s^2+d_1s+d_0}$.

Consider the negative unity feedback configuration with gain $k$ in the feedforward path. The closed loop is stable for $k<k_0$. The maximum value of $k_0$ is ________.

Diagram for GATE 2018 EC question 52

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.09 to 0.11

Explanation

The closed loop with gain $k$ is stable as long as the open-loop gain is less than 1 at the phase crossover frequency (the frequency where the phase is $-180^\circ$).

From the Bode plot, the phase reaches $-180^\circ$ where the magnitude is 20 dB, i.e. $|G|=10$. We need $k|G|<1$, so $k<\dfrac1{10}$, giving $k_0=0.1$.
