GATE 2025 CS (CS2) – Question 9

General Aptitude · Quantitative Aptitude: Algebra, Geometry and Mensuration · 2 marks · Multiple choice

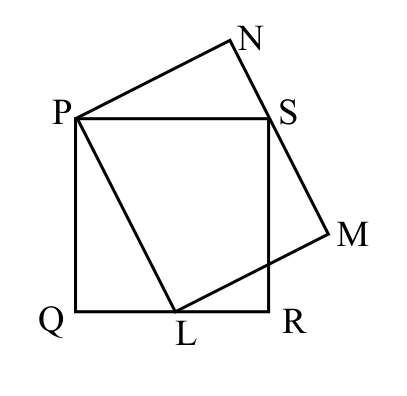

In the given figure, PQRS is a square of side 2 cm and PLMN is a rectangle. The corner L of the rectangle is on the side QR. Side MN of the rectangle passes through the corner S of the square.

What is the area (in cm$^2$) of the rectangle PLMN?

Note: The figure shown is representative.

Diagram for GATE 2025 CS (CS2) question 9
  1. $2\sqrt{2}$
  2. $2$
  3. $8$
  4. $4$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) $4$

Explanation

Use triangle PLS to relate the two shapes. Since S lies on MN and MN is parallel to PL, the perpendicular distance from S to PL is the rectangle's width. Thus triangle PLS has half the area of rectangle PLMN.

The same triangle has base PS=2 cm, and L lies on the opposite side QR, at perpendicular distance 2 cm from PS. Hence
$$[PLS]=\frac12(2)(2)=2\ \text{cm}^2.$$
The rectangle has twice that area, **4 cm², D**, independent of where L lies along QR.
