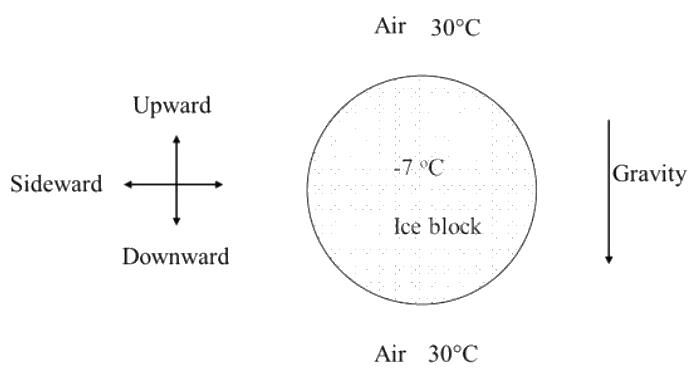

Let a spherical block of ice at $-7$ °C be exposed to atmospheric air at 30 °C with the gravitational direction as shown in the figure below. What will be the overall direction of air flow in this situation?
The air next to the cold ice cools down and becomes denser, so it sinks. The overall flow around the ice is therefore downward, as in natural convection around a cold body.
