GATE 2025 ME – Question 42

Vibrations · Free vibration of single degree of freedom systems, damping · 2 marks · Multiple choice

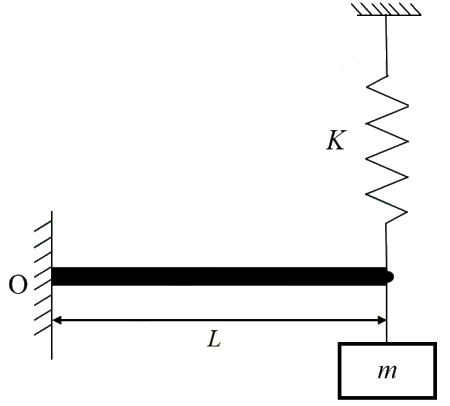

The system shown in the figure below consists of a cantilever beam (with flexural rigidity $EI$ and negligible mass), a spring (with spring constant $K$ and negligible mass) and a block of mass $m$. Assuming a lumped parameter model for the system, the fundamental natural frequency ($\omega_n$) of the system is

Diagram for GATE 2025 ME question 42
  1. $\sqrt{\dfrac{\frac{3EI}{L^3} + K}{m}}$
  2. $\sqrt{\dfrac{\frac{EI}{L^3} + K}{m}}$
  3. $\sqrt{\dfrac{\frac{3EI}{L^3} + K}{2m}}$
  4. $\sqrt{\dfrac{\frac{EI}{L^3} + K}{2m}}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) $\sqrt{\dfrac{\frac{3EI}{L^3} + K}{m}}$

Explanation

**1. Replace the cantilever by its tip stiffness.** A tip load F produces deflection $\delta=FL^3/(3EI)$, so the equivalent beam stiffness is $k_b=F/\delta=3EI/L^3$.

**2. Combine the restoring forces.** The beam tip and the spring attach to the same moving mass, so both experience the same displacement. Their forces add: $F_{restore}=-(k_b+K)x$. Thus they act in parallel.

**3. Write the single-degree-of-freedom equation.** $m\ddot x+(3EI/L^3+K)x=0$, giving $\omega_n=\sqrt{(3EI/L^3+K)/m}$. **Answer: A.** No beam or spring mass is added because both are stated negligible.
