GATE 2023 CE (CE1) – Question 39

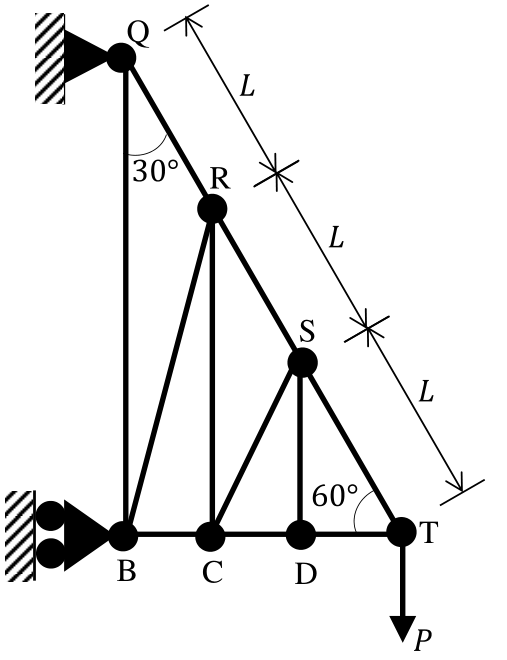

Consider the pin-jointed truss shown in the figure (not to scale). All members have the same axial rigidity, $AE$. Members QR, RS, and ST have the same length $L$. Angles QBT, RCT, SDT are all 90°. Angles BQT, CRT, DST are all 30°. The joint T carries a vertical load $P$. The vertical deflection of joint T is $k\frac{PL}{AE}$. What is the value of $k$?

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) 4.5
Explanation
Use the unit-load method: $\delta_T=\sum\dfrac{F\,f\,L}{AE}$, where $F$ is a member force under $P$ and $f$ is the force under a unit load at T. The unit load is in the same place as $P$, so $f=F/P$ and
$\delta_T=\dfrac{P}{AE}\sum\left(\dfrac{F}{P}\right)^2L$.
**Member forces.** At joint T the top chord ST is $30^\circ$ from the vertical and the bottom chord DT is horizontal. Vertical balance: $F_{ST}\cos30^\circ=P$, so $F_{ST}=\dfrac{P}{\cos30^\circ}=1.155P$ (tension). Horizontal balance: $F_{DT}=F_{ST}\sin30^\circ=0.577P$ (compression).
Now go joint by joint. At D the members are the two horizontal chords and the vertical post SD, with no load, so $SD=0$ and $CD=DT$. At S the members RS and ST are collinear, SD is zero, so the diagonal CS is zero and $RS=ST$. The same argument at C and R gives zero force in RC, BR and QB. So every post and diagonal is a zero-force member; the top chord (QR, RS, ST) carries $1.155P$ tension and the bottom chord (BC, CD, DT) carries $0.577P$ compression.
**Lengths.** The top-chord members are each $L$ long. The horizontal projection of each is $L\sin30^\circ=0.5L$, so each bottom-chord member is $0.5L$ long.
**Sum.**
$\sum\left(\dfrac{F}{P}\right)^2L=3(1.155)^2L+3(0.577)^2(0.5L)=4.0L+0.5L=4.5L$
So $\delta_T=4.5\,\dfrac{PL}{AE}$ and $k=4.5$.
Official GATE 2023 answer key: https://gate2026.iitg.ac.in/doc/download/Answer_keys2023/CE1_ANS_GATE2023.pdf
