GATE 2023 CE (CE1) – Question 43

Hydraulics · Gradually varied flow and water surface profiles · 2 marks · Multiple choice

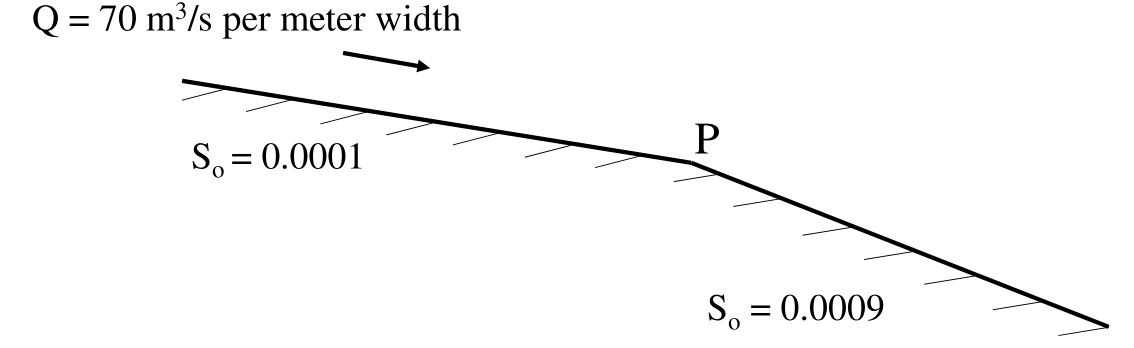

A very wide rectangular channel carries a discharge (Q) of 70 m$^3$/s per meter width. Its bed slope changes from 0.0001 to 0.0009 at a point P, as shown in the figure (not to scale). The Manning's roughness coefficient of the channel is 0.01. What water surface profile(s) exist(s) near the point P?

Diagram for GATE 2023 CE (CE1) question 43
  1. M2 and S2
  2. M2 only
  3. S2 only
  4. S2 and hydraulic jump

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) M2 and S2

Explanation

For a very wide channel $q = \frac{1}{n}y^{5/3}S^{1/2}$. The critical depth is $y_c = \left(\frac{70^2}{9.81}\right)^{1/3} = 7.94$ m. Upstream: $y_n^{5/3} = \frac{70 \times 0.01}{0.01} = 70$, so $y_n = 12.9$ m $> y_c$ (a mild slope). Downstream: $y_n^{5/3} = \frac{70 \times 0.01}{0.03} = 23.3$, so $y_n = 6.6$ m $< y_c$ (a steep slope). The flow passes through critical depth near P: upstream the depth falls from $y_n$ to $y_c$, giving an M2 curve, and downstream it falls from $y_c$ towards $y_n$, giving an S2 curve.
