GATE 2022 ME (ME1) – Question 5

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 1 mark · Multiple choice

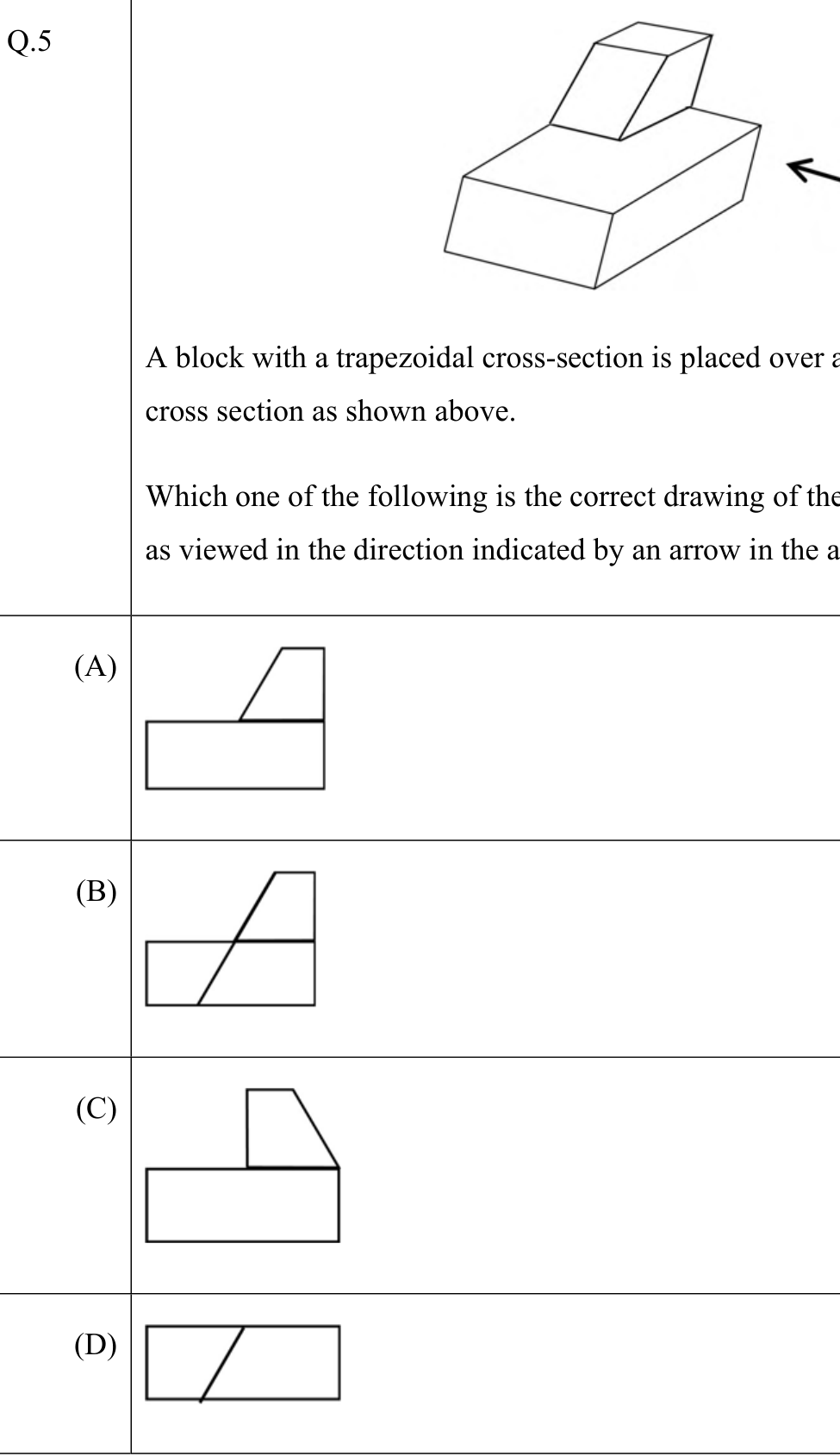

A block with a trapezoidal cross-section is placed over a block with rectangular cross section as shown above.
Which one of the following is the correct drawing of the view of the 3D object as viewed in the direction indicated by an arrow in the above figure?

a long rectangular block with a smaller block of trapezoidal cross-section on its top, and an arrow showing the viewing direction from the right-hand end. Options A to D are end views: a rectangle with a trapezoid on top (A: trapezoid at the right, with its slanted side on the left; B: with a slanted line across both blocks; C: trapezoid at the left with the slanted side on the right; D: a rectangle with only a slanted line).
  1. Option A in the figure
  2. Option B in the figure
  3. Option C in the figure
  4. Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

Viewed from the end, the lower block appears as a rectangle and the upper block as a trapezoid sitting on its top surface, with no lines crossing the lower rectangle (options B and D have extra lines). The slanted face of the trapezoid is on the left in the drawing, which is option A.
