GATE 2022 AE – Question 33

Structures · Strength of materials: Transformation of stress and strain, Mohr's circle, combined loading and failure criteria · 1 mark · Numerical answer

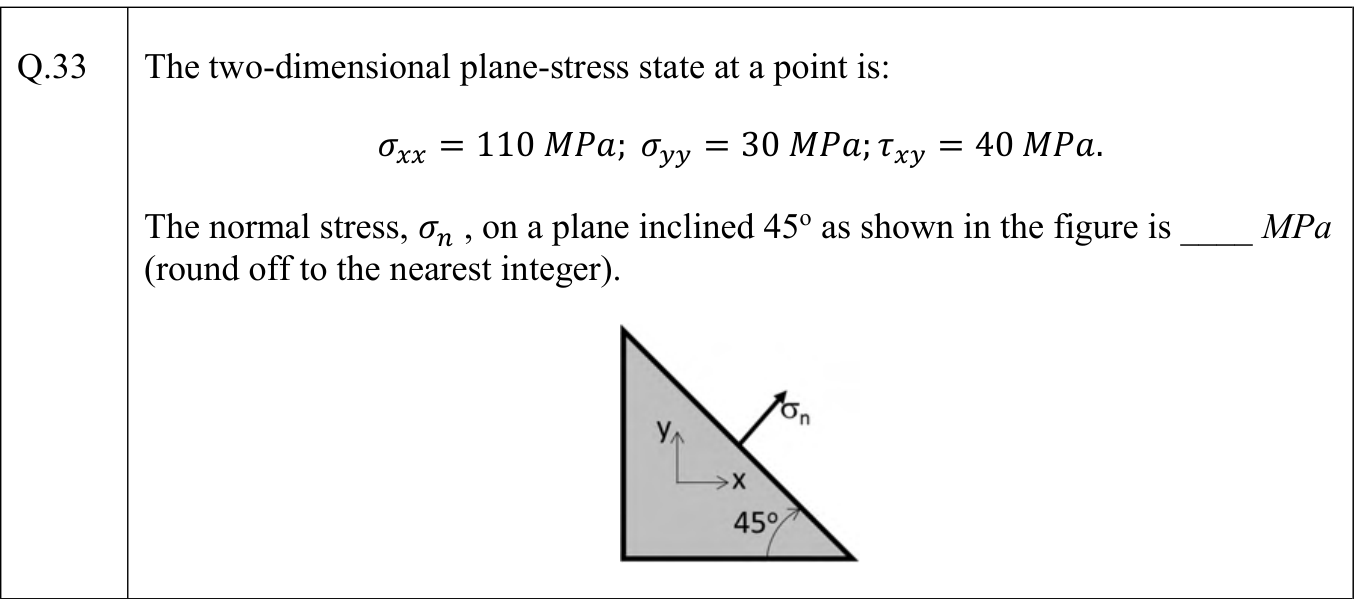

Plane stresses are $\sigma_{xx}=110$ MPa, $\sigma_{yy}=30$ MPa, $\tau_{xy}=40$ MPa. The normal stress on the shown 45° plane (nearest integer MPa) is ________.

source diagram and its labels are reproduced in the attached image.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 110

Explanation

The normal is at 45°, so $\sigma_n=(110+30)/2+40\sin90^\circ=110$ MPa.
