GATE 2022 CE (CE1) – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

Consider a cube made by folding a single sheet of paper of appropriate shape. The interior faces of the cube are all blank. However, the exterior faces that are not visible in the above view may not be blank. Which one of the following represents a possible unfolding of the cube?

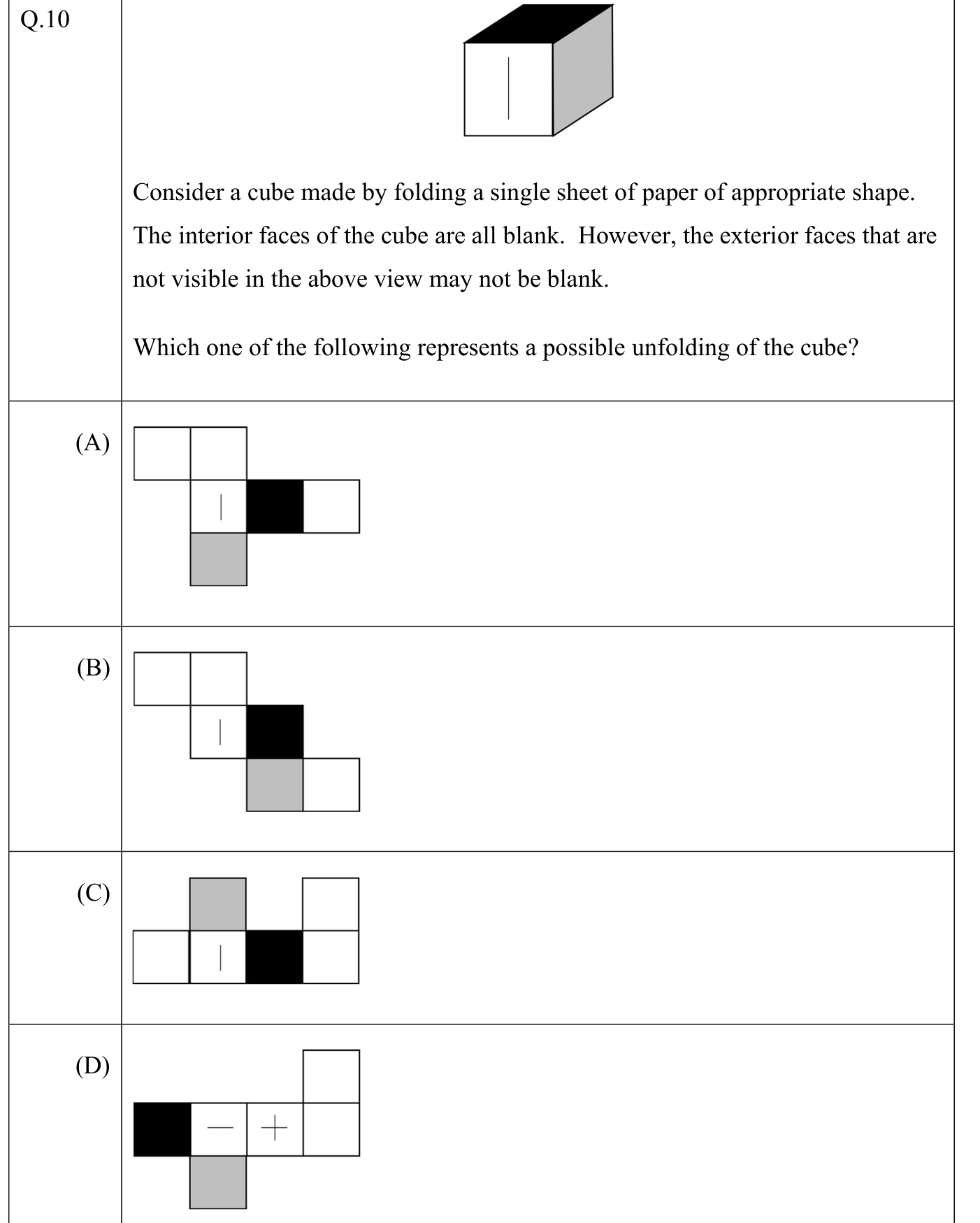

Cube with black top, grey right face and a vertical line on the front face; four labelled candidate nets A–D. See the attached source image.
  1. Option A in the figure
  2. Option B in the figure
  3. Option C in the figure
  4. Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

Fold each candidate with the marked surfaces on the exterior. The black face, grey face and the face carrying the line must meet around a common corner, with the shown relative orientation.

Option A provides the intended adjacency of these three surfaces. The remaining faces can be blank or marked because they are not visible in the view. **Answer: A.**
