GATE 2021 CE (CE1) – Question 57

Geotechnical Engineering · Stability of slopes · 2 marks · Numerical answer

For a 15 m purely cohesive slope, cu=75 kPa. A trial circle of radius 25 m subtends 60°; the sliding mass weighs 2500 kN/m with line of action 10 m horizontally from the toe, vertically below the circle centre. Find undrained factor of safety to two decimals.

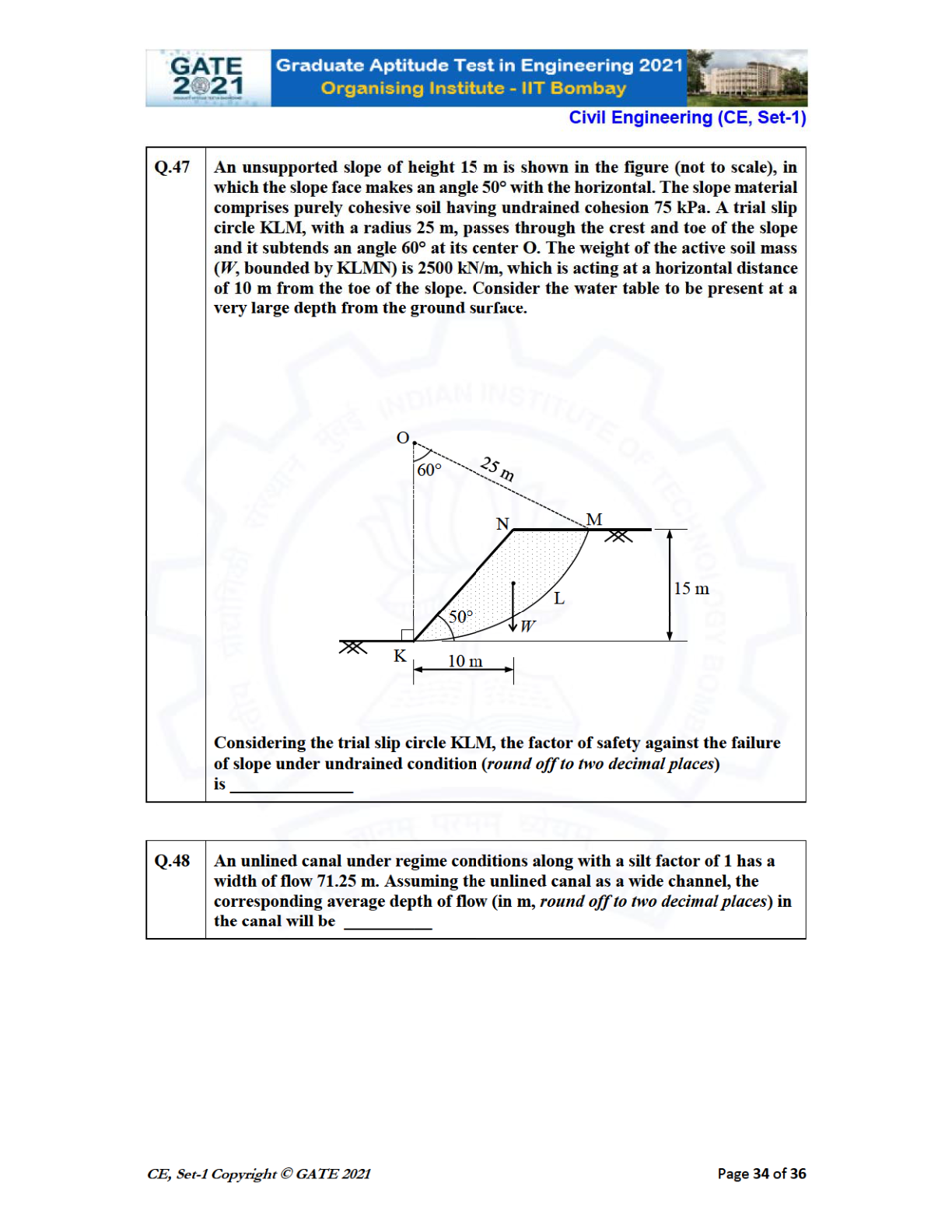

see the reproduced source diagram and its labels.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 1.94 to 1.98

Explanation

Slip arc length is $r\theta=25\pi/3$ m. Resisting moment is $c_u(r\theta)r=75(25\pi/3)(25)$. Driving moment about the circle centre is W×10=25000 kN·m/m. Their ratio is **1.96350≈1.96**. The slope angle and height are already reflected in the supplied trial-circle geometry.
