GATE 2019 CE (CE1) – Question 19

Concrete Structures · Design and detailing of beams and slabs · 1 mark · Multiple choice

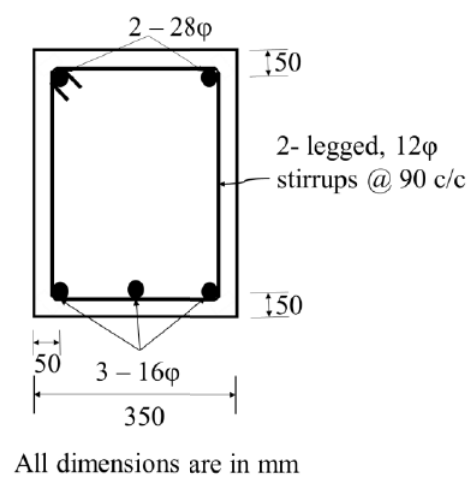

For the reinforced concrete beam section shown, find the bottom nominal cover according to IS 456:2000. The bottom main bars are 16 mm diameter with centres 50 mm from the bottom face; the two-legged stirrups are 12 mm diameter.

Diagram for GATE 2019 CE (CE1) question 19
  1. 30 mm
  2. 36 mm
  3. 42 mm
  4. 50 mm

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 30 mm

Explanation

Nominal cover is measured to the outermost reinforcement, the stirrup. Subtract the main-bar radius and stirrup diameter from its centre distance: $50-16/2-12=$ **30 mm, A**.
