GATE 2019 CE (CE1) – Question 64

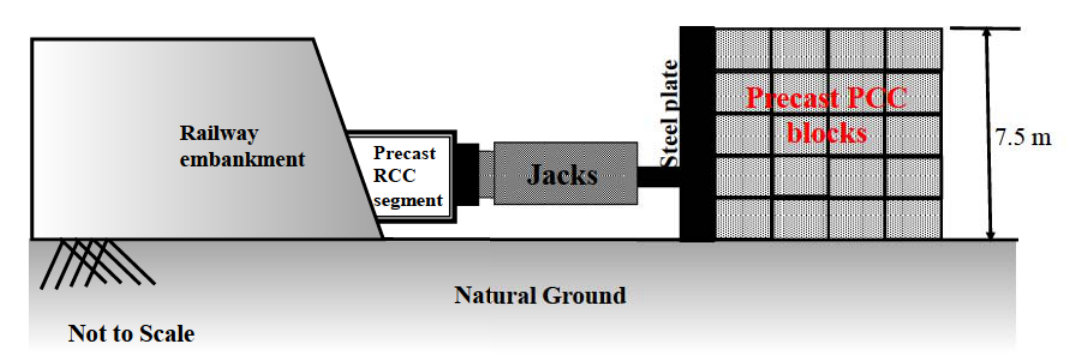

Precast 3 m × 3 m square reinforced-concrete segments are pushed through a railway embankment to form an underpass. Jacks react against a rigid steel plate and a precast PCC-block stack on natural ground, as shown. Each stage requires 1875 kN. Stack footprint is 37.5 m², height 7.5 m and unit weight 24 kN/m³. Natural soil has c = 17 kPa, φ = 25° and unit weight 18 kN/m³. Assume the stack is rough and has the soil’s shear properties at its base. Find safety factor against shear failure, to one decimal place.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 1.8 to 2.1
Explanation
Stack weight is $W=37.5(7.5)(24)=6750$ kN. Base shear resistance is $cA+W\tan\phi=17(37.5)+6750\tan25^\circ=3785.08$ kN. Safety factor is $3785.08/1875=2.0187$: **2.0**.
