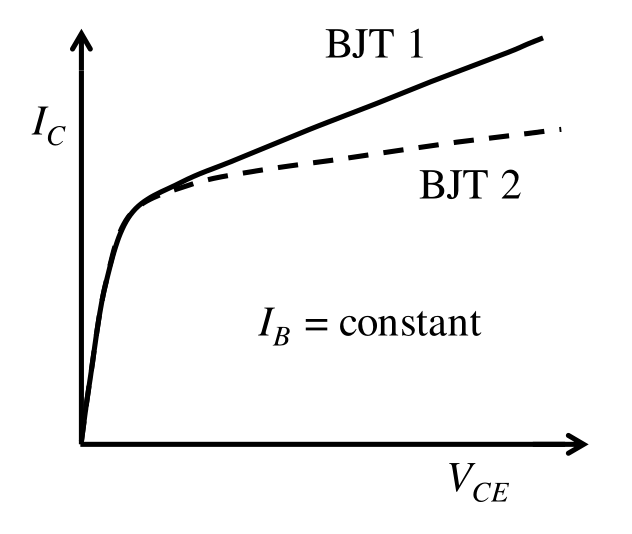

Figure shows the output characteristics of two different Bipolar Junction Transistors (BJT), BJT 1 with magnitude of Early voltage $|V_{A1}|$, and BJT 2 with magnitude of Early voltage $|V_{A2}|$. Which of the following options is/are correct regarding the Early voltages?
Correct answer: (C) $|V_{A1}|<|V_{A2}|$; (D) $|V_{A2}|$ is finite
Explanation
In the active region, $I_C=I_{C0}\left(1+\dfrac{V_{CE}}{V_A}\right)$, so the slope of the output characteristic is $\dfrac{I_C}{V_A}$ (approximately). A steeper curve means a smaller Early voltage.
BJT 1 has the steeper curve, so $|V_{A1}|<|V_{A2}|$. BJT 2's curve still has a non-zero slope, so $|V_{A2}|$ is finite (an infinite $V_A$ would give a perfectly flat curve).
