GATE 2026 EC – Question 47

Networks, Signals and Systems · LTI Systems · 2 marks · Multiple choice

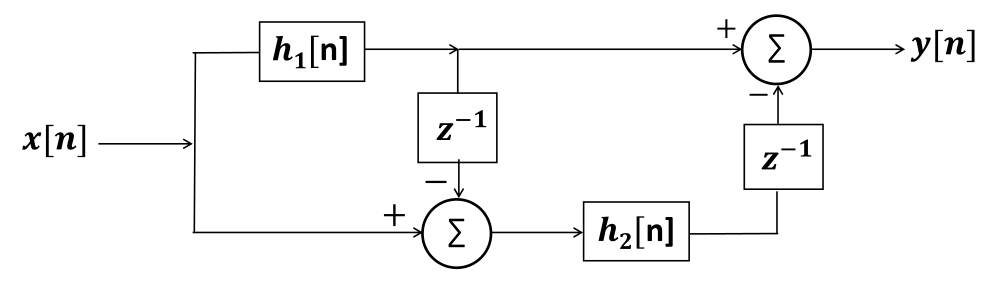

Consider the discrete time system (S) with input $x[n]$ and output $y[n]$ as shown in the Figure. The two sub-systems represented by their impulse responses $h_1[n]$ and $h_2[n]$ are linear and time invariant. Which of the following statements is necessarily TRUE?

Diagram for GATE 2026 EC question 47
  1. S is causal.
  2. S is linear and time invariant.
  3. S is linear and time varying.
  4. S is non-linear.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) S is linear and time invariant.

Explanation

The system is built entirely from LTI blocks ($h_1[n]$, $h_2[n]$), unit delays and adders/subtractors. A combination of linear time-invariant blocks is itself linear and time-invariant, so (B) is true.

Causality depends on whether $h_1$ and $h_2$ are causal, which is not stated, so (A) is not necessarily true.
