GATE 2026 EC – Question 59

Control Systems · Routh-Hurwitz and Nyquist Stability Criteria · 2 marks · Numerical answer

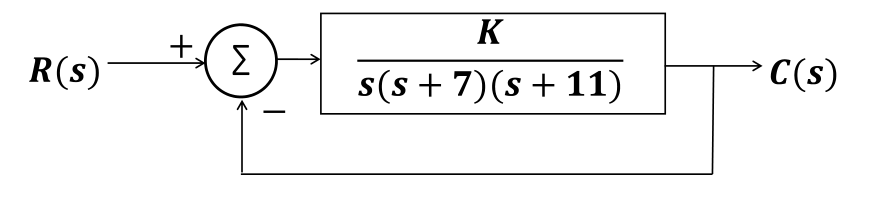

Consider the unity negative feedback control system shown in the Figure. The value of gain $K\,(>0)$ at which the given system will remain marginally stable is ________. (Answer in integer)

Diagram for GATE 2026 EC question 59

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 1386

Explanation

Closed-loop characteristic equation: $s(s+7)(s+11)+K=s^3+18s^2+77s+K=0$.

Routh array:

rowentries
$s^3$1, 77
$s^2$18, $K$
$s^1$$\dfrac{18\times77-K}{18}$
$s^0$$K$

Marginal stability occurs when the $s^1$ entry is zero: $K=18\times77=1386$.
