GATE 2018 ME (ME2) – Question 33

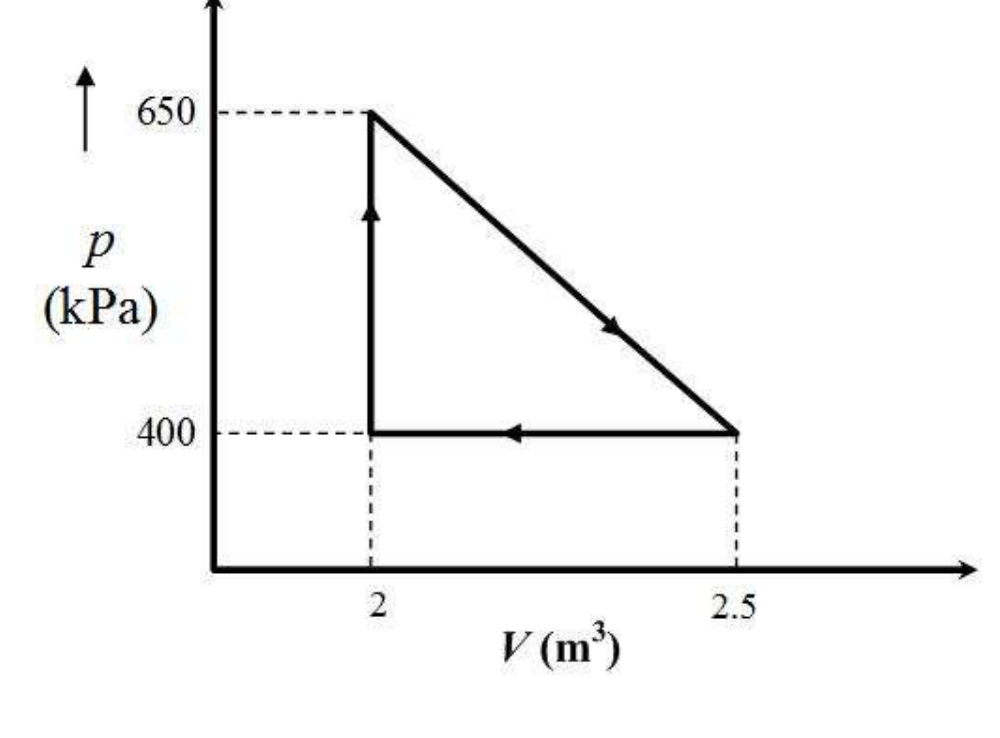

An engine follows the shown reversible cycle. Find work output in kJ/cycle, to two decimal places.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 62.00 to 63.00
Explanation
Cycle work equals enclosed p–V area. The clockwise triangle gives positive output: $$W=\tfrac12(650-400)(2.5-2)=62.50\ \mathrm{kJ}.$$ Here kPa·m³ equals kJ.
