GATE 2018 CE (CE2) – Question 55

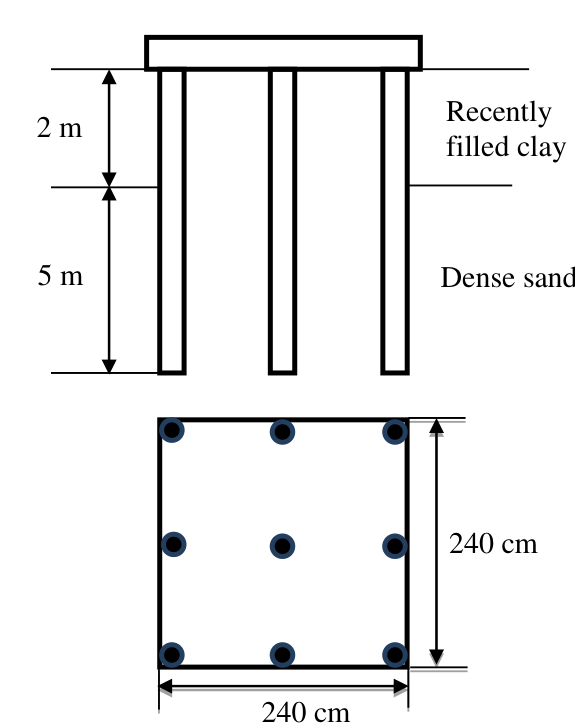

Nine piles form a 3×3 square group in dense sand beneath recently filled clay, as shown. Each pile perimeter is 126 cm, and group dimensions are 240 cm × 240 cm. Clay undrained strength is 15 kPa and unit weight 16 kN/m³. Negative frictional load on the group, to two decimals, is ______ kN.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 472.00 to 472.50
Explanation
The keyed result uses the pile-group block convention. Downward block-side shear is $4(2.4)(2)(15)=288$ kN. Enclosed settling-clay weight is $2.4^2(2)(16)=184.32$ kN. Total is 472.32 kN. Summing individual pile shaft friction alone would represent a different model.
