GATE 2016 CE (CE2) – Question 16

Structural Analysis · Stiffness matrix method · 1 mark · Multiple choice

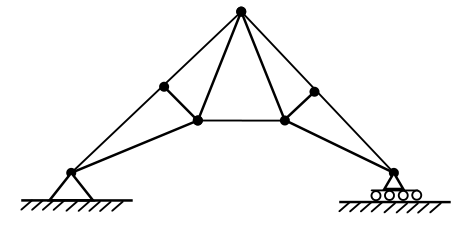

The kinematic indeterminacy of the plane truss shown in the figure is

Diagram for GATE 2016 CE (CE2) question 16
  1. 11
  2. 8
  3. 3
  4. 0

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 11

Explanation

The diagram contains seven joints, each with two in-plane translational degrees of freedom. A pin removes two support translations and a roller removes one, leaving2·7−3=11 coordinates. Truss joint rotations are not independent deformation coordinates. Thus **11, A**.
