GATE 2016 ME (ME2) – Question 21

Machine Design · Design for static and dynamic loading, failure theories · 1 mark · Multiple choice

A machine element XY, fixed at end X, is subjected to an axial load P, transverse load F, and a twisting moment T at its free end Y. The most critical point from the strength point of view is

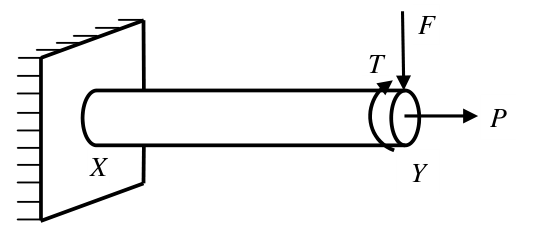

Diagram for GATE 2016 ME (ME2) question 21
  1. a point on the circumference at location Y
  2. a point at the center at location Y
  3. a point on the circumference at location X
  4. a point at the center at location X

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) a point on the circumference at location X

Explanation

The fixed end X has the largest bending moment from the transverse end load. On its circumference, bending normal stress and torsional shear are greatest, superimposed on the axial stress. The intended critical location is therefore **a point on the circumference at X, C**. The most highly stressed circumferential side depends on the signs of axial and bending stresses.
