GATE 2014 EC (EC4) – Question 16

Networks, Signals and Systems · Circuit Analysis · 1 mark · Multiple choice

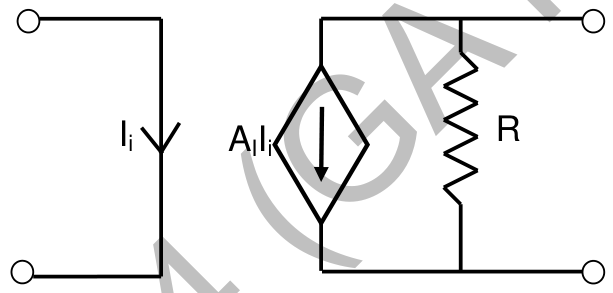

What does the circuit shown represent?

Diagram for GATE 2014 EC (EC4) question 16
  1. Voltage-controlled voltage source
  2. Voltage-controlled current source
  3. Current-controlled current source
  4. Current-controlled voltage source

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) Current-controlled current source

Explanation

The output dependent source supplies current proportional to input current Ii, while the input is an ideal short. Thus the controlling variable and controlled variable are both currents: **current-controlled current source,C**. R models finite output resistance and does not change the source category.
