GATE 2014 EC (EC4) – Question 17

Networks, Signals and Systems · Circuit Analysis · 1 mark · Numerical answer

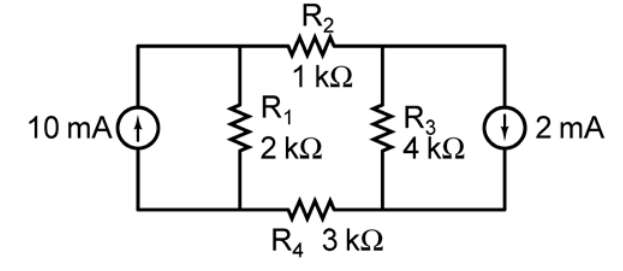

Find the magnitude of current through R₂ (mA) in the circuit shown.

Diagram for GATE 2014 EC (EC4) question 17

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 2.79 to 2.81

Explanation

Let I in mA flow through R2left-to-right and return through R4. The left shunt current is10−I, giving left voltage2(10−I)V. The right shunt current is I−2, giving right voltage4(I−2)V. The series bridge drop is(1+3)I=4I. Thus20−2I=4I−8+4I, giving **I=2.8mA**.
