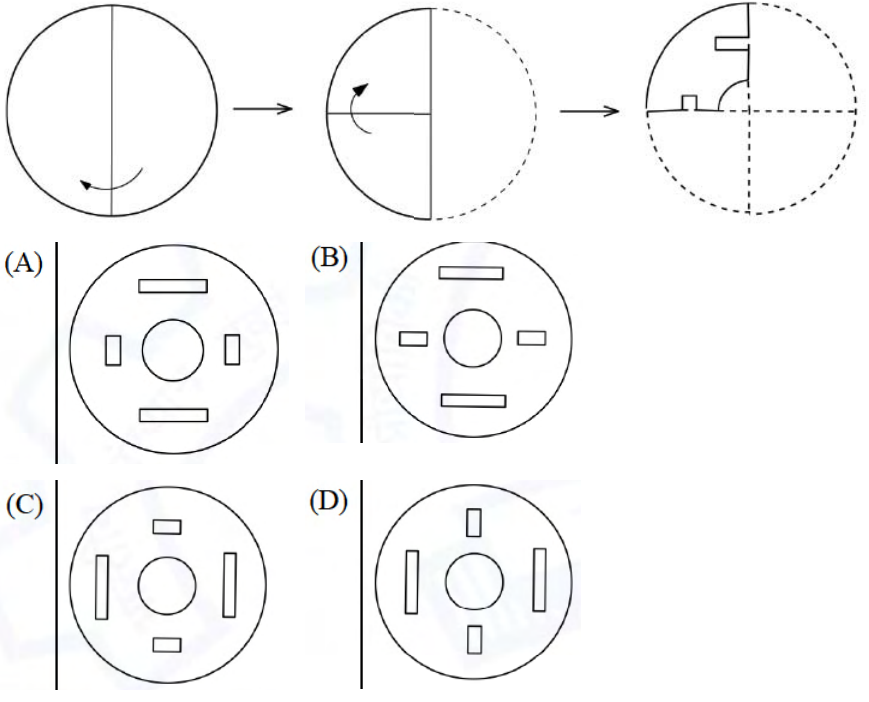

The circular paper is folded along the shown lines and directions, punched in its final folded state and unfolded in reverse order. Which result is obtained?
Reflect each punched feature first across the horizontal fold and then across the vertical fold. The quarter-circle cut at the intersection becomes a central circular hole. The slit touching the vertical fold forms long horizontal slots above and below; the slit touching the horizontal fold forms short vertical slots left and right. This matches **A**.
