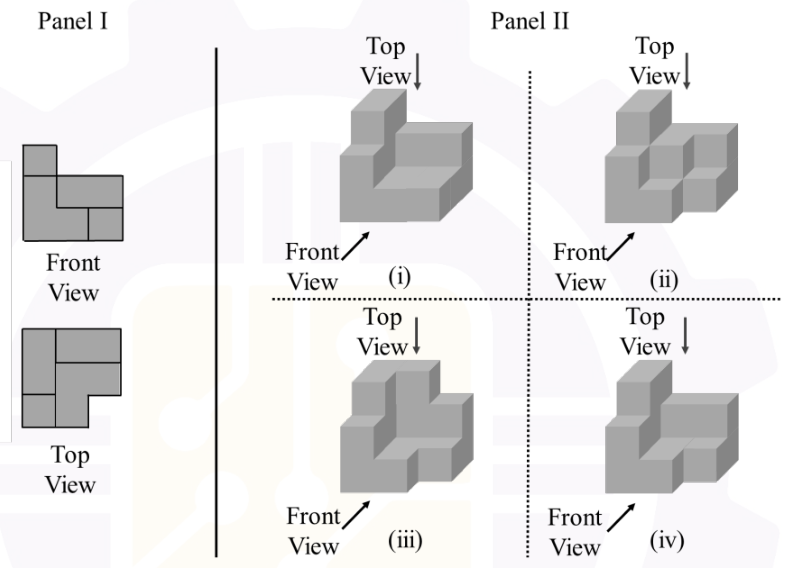

The front projection has a taller left column, and the top projection has an L-shaped footprint, with the front-right corner missing. Structure (iv) has both features. The other candidates introduce an extra block in the footprint or the wrong height in the front view. **D**.
