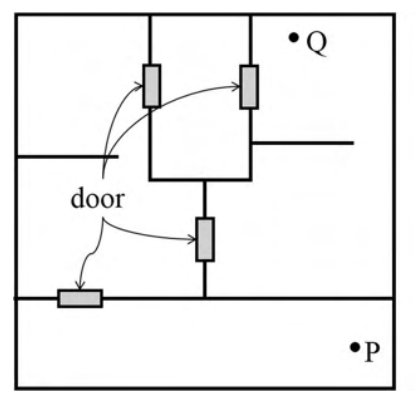

The top view shows a building with several rooms and initially closed doors. Find the minimum number of doors that must be opened to travel from P to Q.
P lies in the bottom corridor. Open the door from it into the left/lower interior region, then open the central lower door into the region containing Q. This gives a two-door route. One door cannot suffice because P’s sole exit does not directly enter Q’s region. **2, C**.
