GATE 2021 AG – Question 7

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

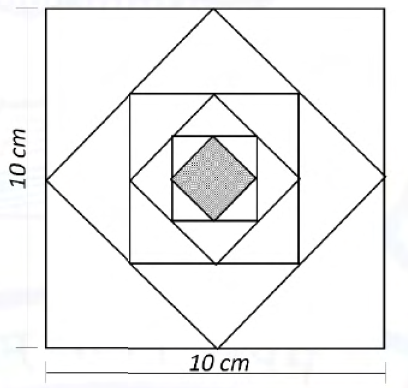

Each inner square joins the midpoints of the next larger square. The outer square has side10 cm. Find the smallest shaded square area in cm².

12.50
6.25
3.125
1.5625

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 3.125

Explanation

Joining adjacent side midpoints halves a square’s area. The figure contains five such reductions from the outer100 cm² square to the shaded centre:100,50,25,12.5,6.25,3.125. Hence **3.125 cm²,C**. Count reductions, not just upright squares.
