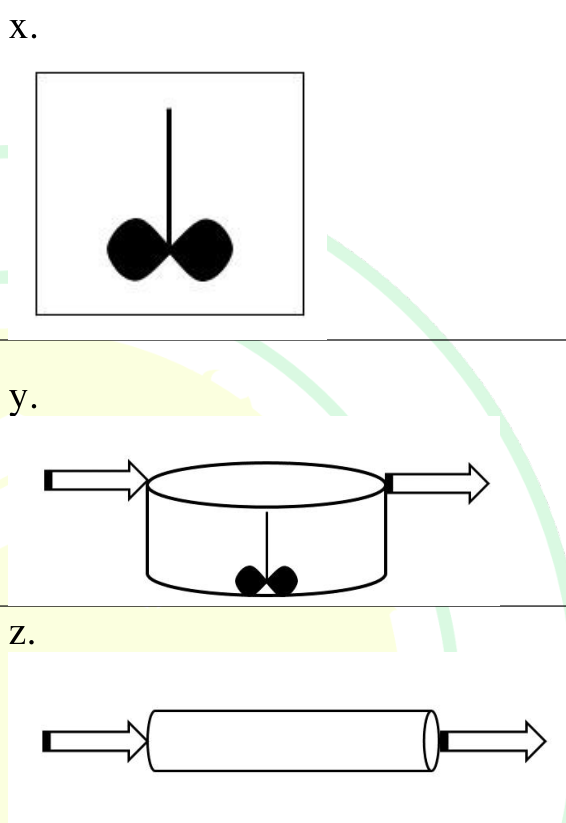

Match reactor types 1 Plug flow,2 Continuously stirred tank,3 Batch with diagrams x, y, z. The stirrer symbol denotes mixing; diagrams are not to scale.
Diagram z shows a flow-through tube without complete backmixing, the plug-flow idealization. Diagram y has continuous inlet/outlet and a stirrer, the CSTR. Diagram x has a stirrer but no continuous inlet/outlet, the batch reactor. Therefore **1–z,2–y,3–x, B**.
