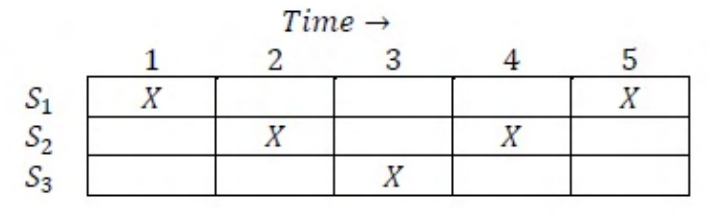

Differences of occupied times in the same stage give forbidden latencies two and four. Starting jobs every three cycles gives differences three,six,nine,…, none forbidden, so average three is attainable. A gap one forces the next gap to be at least five because successive-start differences two and four would collide; such combinations cannot average below three. Therefore MAL=3.
