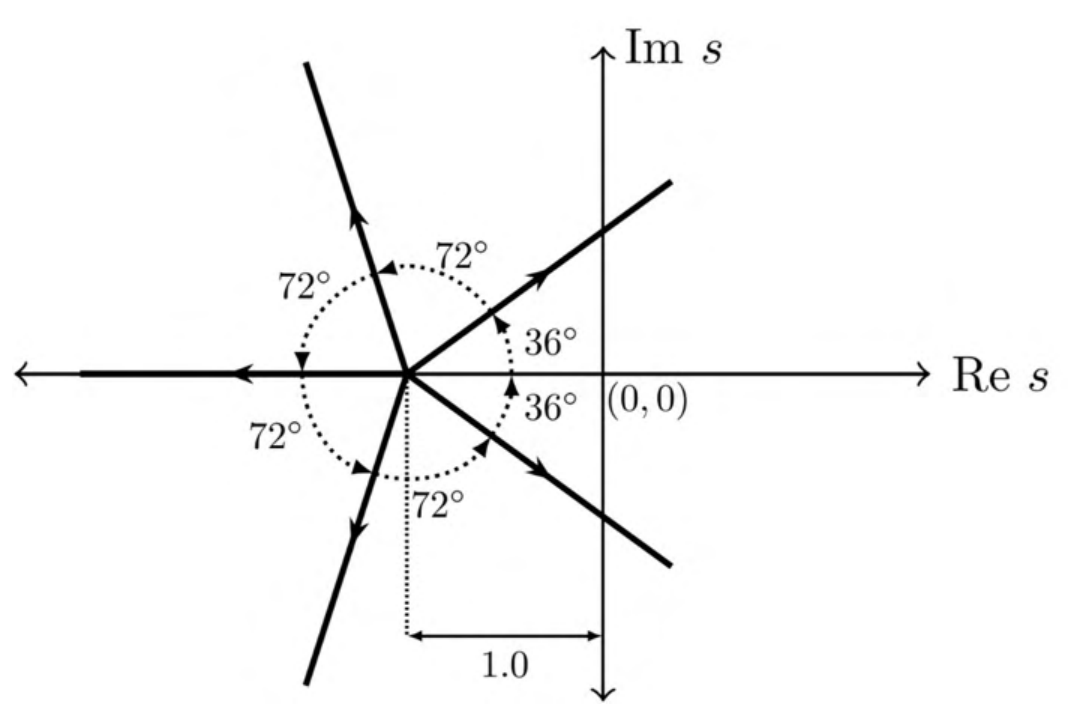

The root-locus plot of a closed-loop system with unity negative feedback and transfer function $KG(s)$ in the forward path is shown in the figure. Note that $K$ is varied from 0 to $\infty$.
Select the transfer function $G(s)$ that results in the root-locus plot of the closed-loop system as shown in the figure.
The asymptotes are at $36^\circ,108^\circ,180^\circ,252^\circ,324^\circ$, which is 5 asymptotes, so $n-m=5$. They meet at the centroid $\sigma=-1$. For $G(s)=\frac{1}{(s+1)^5}$, $n-m=5$ with all poles at $-1$, so the centroid is $-1$. Option B has centroid $0$, and C and D have $n-m=5$ but the wrong centroid or unstable structure.
