GATE 2016 EC (EC3) – Question 6

General Aptitude · Quantitative Aptitude: Data Interpretation, Arithmetic and Number Computation · 2 marks · Multiple choice

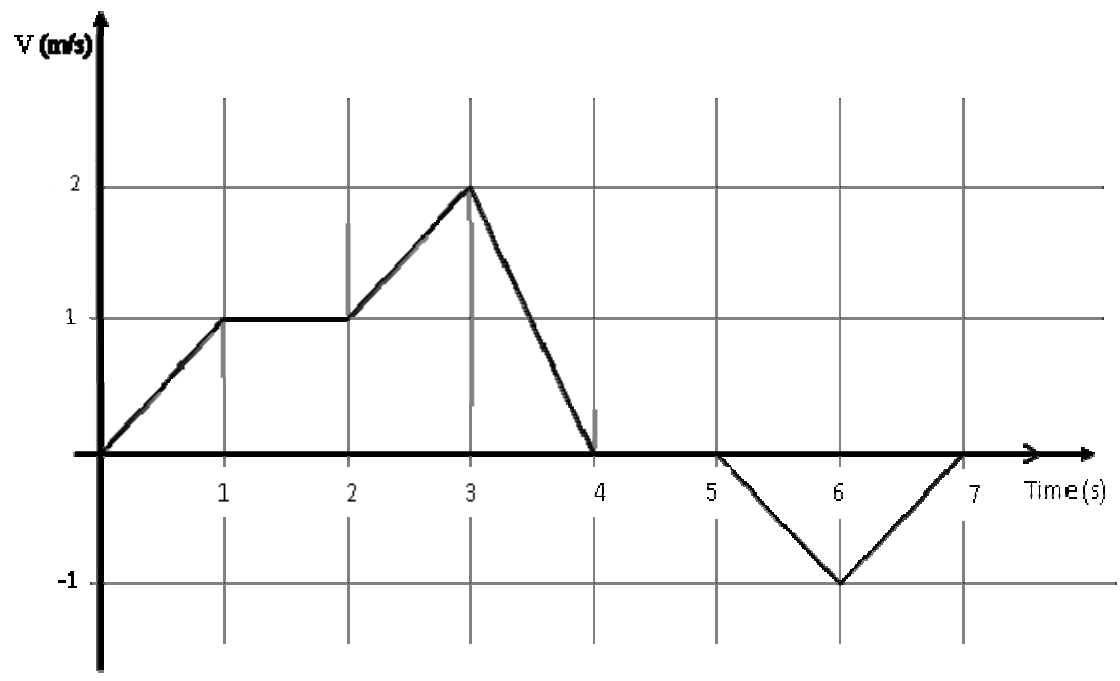

A vehicle’s velocity along a straight line, in m/s, is plotted against time in seconds. How much does its odometer reading increase over the 7 seconds, in metres?

Diagram for GATE 2016 EC (EC3) question 6

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) 5

Explanation

An odometer measures distance, so add areas under the speed |v| rather than signed velocity. From 0–1 s the area is 1/2; from 1–2 it is 1; from 2–3 it is 3/2; from 3–4 it is 1; and from 4–5 it is zero.

The negative-velocity triangle from 5–7 contributes another 1 metre in distance. Total distance is $0.5+1+1.5+1+1=$ **5 m, D**.
