GATE 2017 EE (EE2) – Question 51

Electric Circuits · Network Theorems: Thevenin, Norton, Superposition and Maximum Power Transfer theorem · 2 marks · Multiple choice

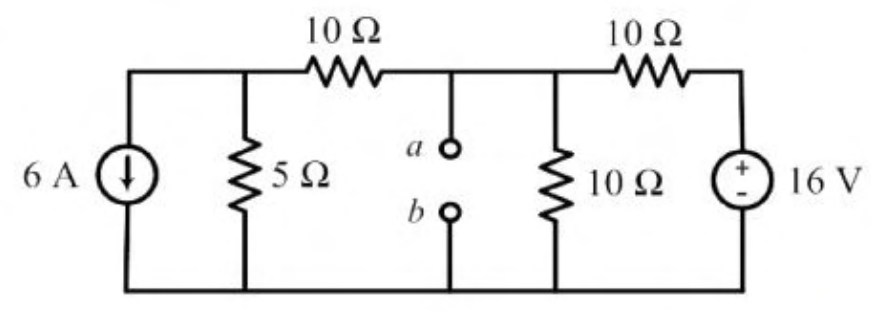

For the shown network, the Thevenin voltage $V_{ab}$ is

Diagram for GATE 2017 EE (EE2) question 51
  1. −1.5 V
  2. −0.5 V
  3. 0.5 V
  4. 1.5 V

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) −1.5 V

Explanation

Set node b to zero and let the left upper node be V1 and terminal a be Va. The right voltage source fixes its upper node at 16 V.

KCL at the left node gives $V_1/5+(V_1-V_a)/10+6=0$, or 3V1−Va=−60. At a, $(V_a-V_1)/10+V_a/10+(V_a-16)/10=0$, or 3Va−V1=16.

Solving gives **Va=−1.5 V**, so Vab=−1.5 V, **A**.
