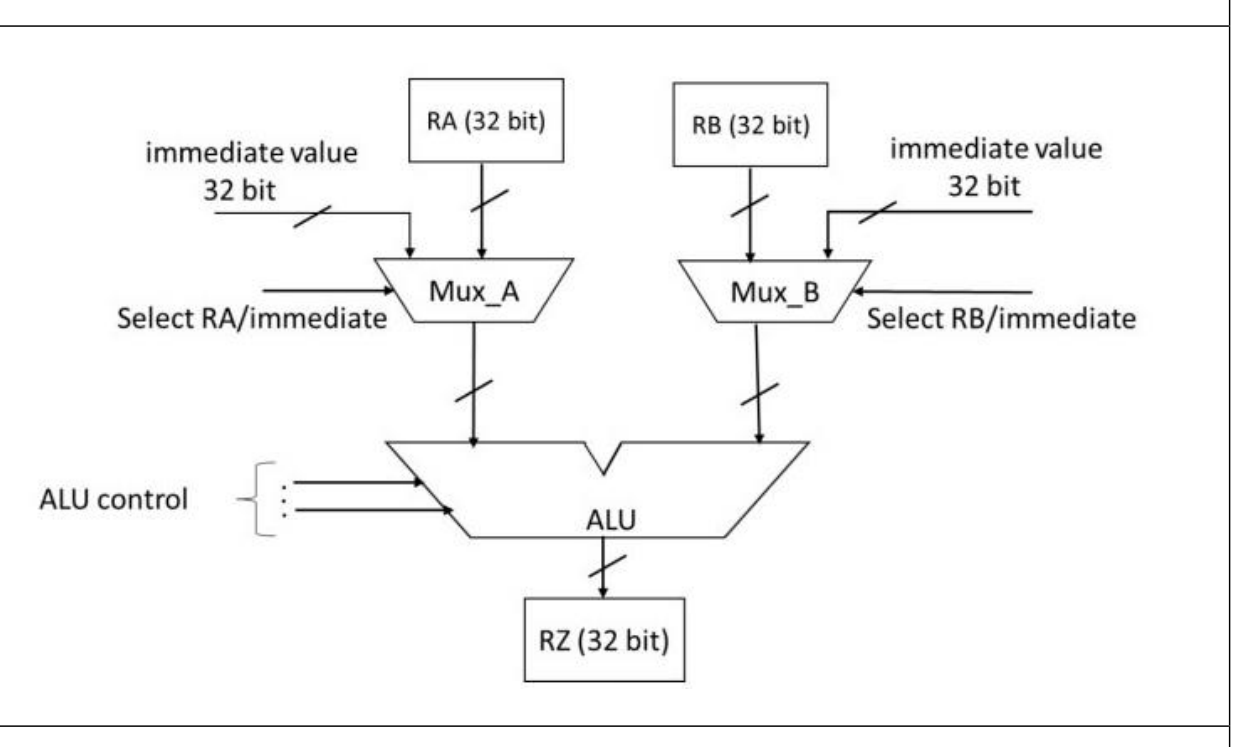

A partial data path of a processor is given in the figure, where RA, RB, and RZ are 32-bit registers. Which option(s) is/are CORRECT related to arithmetic operations using the data path as shown?
The data path can implement arithmetic operations involving two registers.
The data path can implement arithmetic operations involving one register and one immediate value.
The data path can implement arithmetic operations involving two immediate values.
The data path can only implement arithmetic operations involving one register and one immediate value.
Correct answer: (A) The data path can implement arithmetic operations involving two registers.; (B) The data path can implement arithmetic operations involving one register and one immediate value.; (C) The data path can implement arithmetic operations involving two immediate values.
Explanation
Each mux independently selects a register or an immediate, so all four combinations reach the ALU. Register-register, register-immediate and immediate-immediate operations are all possible, so (D) is false.
