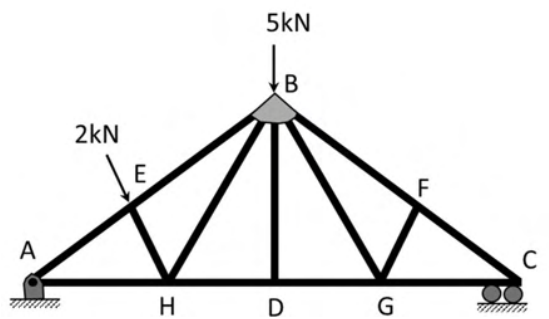

At joint D, members HD and DG are collinear and there is no external load or support reaction. The only non-collinear member is BD. Vertical equilibrium at D therefore requires its force to be zero, D. The loads at B and E are carried through the other triangulated paths.
