GATE 2026 AR — Architecture – Question 42

Urban Design and Conservation · Elements of urban built environment - urban form, spaces, structure, pattern, fabric, texture, grain · 2 marks · Multiple select

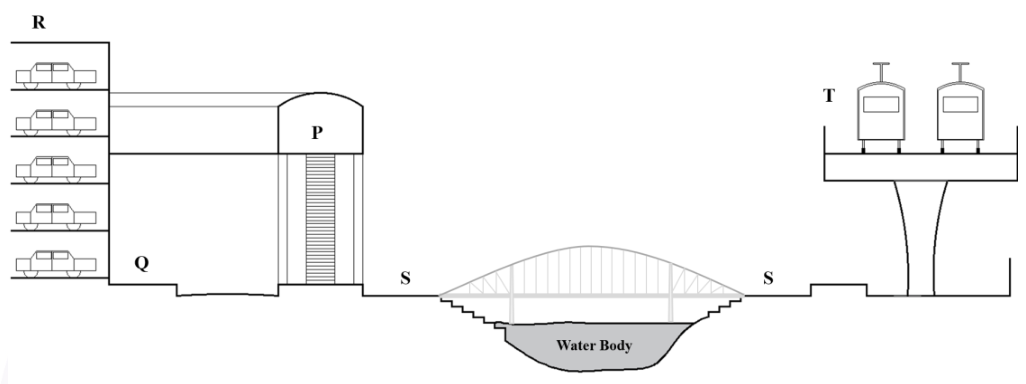

Which combinations correctly label the city section shown?

Diagram for GATE 2026 AR — Architecture question 42

R footpath; S promenade; T mass rapid transit corridor
P skywalk; R multilevel car parking; S promenade
Q footpath; R mass rapid transit corridor; T multilevel car parking
P skywalk; Q footpath; T mass rapid transit corridor

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) P skywalk; R multilevel car parking; S promenade; (D) P skywalk; Q footpath; T mass rapid transit corridor

Explanation

P is the elevated pedestrian skywalk; Q is the ground-level footpath; R is the multilevel parking structure; S is the waterside promenade; T is the elevated mass-transit corridor. Thus B and D are entirely correct. A and C misidentify R.

More Elements of urban built environment - urban form, spaces, structure, pattern, fabric, texture, grain questions

GATE 2026 AR — Planning Q42 – Which combinations correctly label the city section shown?
GATE 2026 AR — Planning Q60 – Which combinations correctly identify urban patterns P, Q, R, S shown?
GATE 2022 AR — Architecture Q35 – Identify the labelled urban-space elements P, Q, R, S in the sketch.
GATE 2022 AR — Planning Q35 – Identify the labelled urban-space elements P, Q, R, S in the sketch.

All Elements of urban built environment - urban form, spaces, structure, pattern, fabric, texture, grain questions →
