GATE 2026 AR — Planning – Question 60

Urban Design and Conservation · Elements of urban built environment - urban form, spaces, structure, pattern, fabric, texture, grain · 2 marks · Multiple select

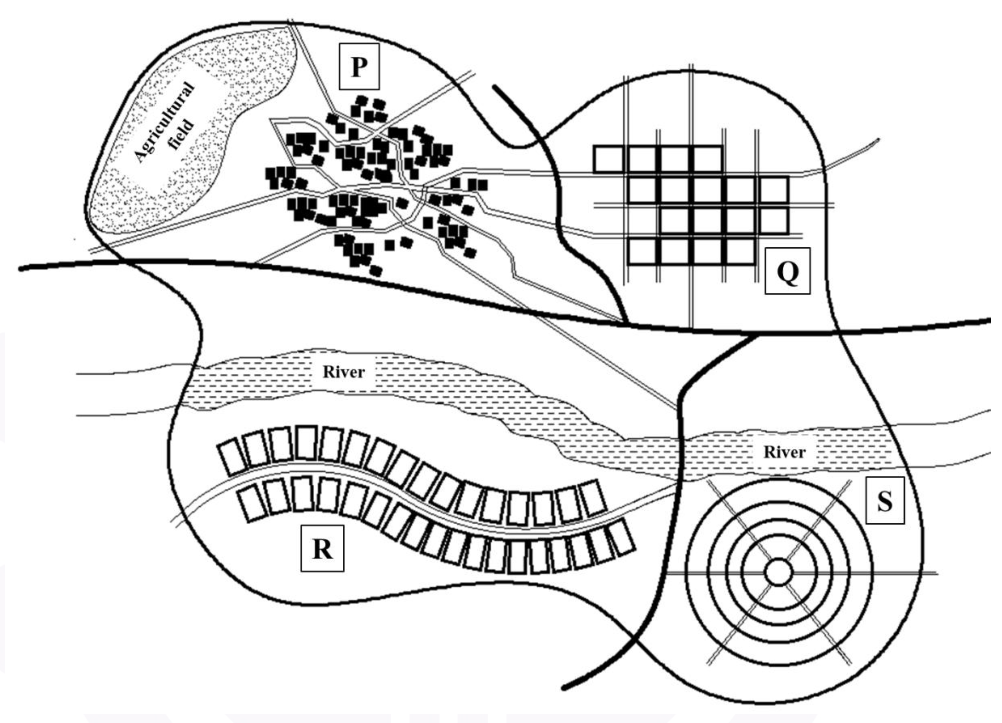

Which combinations correctly identify urban patterns P, Q, R, S shown?

Diagram for GATE 2026 AR — Planning question 60

P organic; R linear
P organic; Q linear
Q gridiron; S radial
Q organic; R radial

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) P organic; R linear; (C) Q gridiron; S radial

Explanation

P has irregular incrementally formed streets characteristic of an organic pattern. Q has an orthogonal gridiron layout. R extends along a linear spine, while S radiates from a centre. Thus A, C. B mislabels the grid, and D confuses both Q and R.
