GATE 2022 EE – Question 28

Electric Circuits · Transient response of DC and AC networks, sinusoidal steady-state analysis, resonance, two port networks, balanced three phase circuits, star-delta transformation, complex power and power factor in AC circuits · 1 mark · Numerical answer

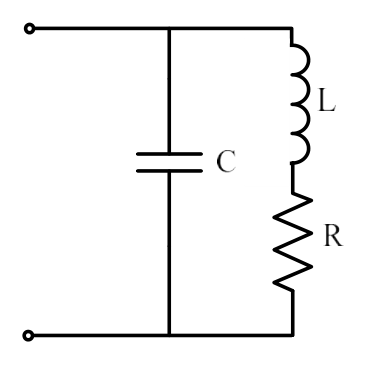

The network shown below has a resonant frequency of 150 kHz and a bandwidth of 600 Hz. The $Q$-factor of the network is ________. (round off to nearest integer)

Diagram for GATE 2022 EE question 28

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 250

Explanation

The quality factor of a resonant circuit is $Q=\dfrac{f_0}{\text{bandwidth}}$.

$Q=\dfrac{150000}{600}=250$.
