GATE 2026 AR — Planning – Question 22

Design and Graphics · Universal design · 1 mark · Multiple select

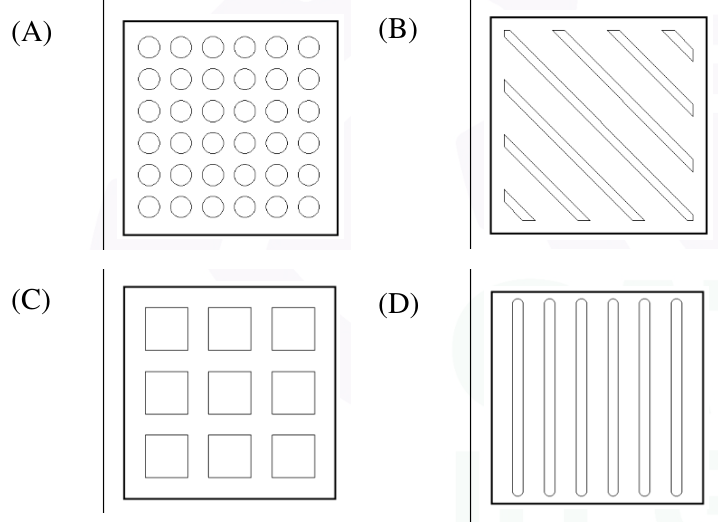

Which plans shown represent tactile tiles for assisting visually impaired people, in the accessibility context referred to by the Rights of Persons with Disabilities Act 2016?

Diagram for GATE 2026 AR — Planning question 22

Tile A
Tile B
Tile C
Tile D

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Tile A; (D) Tile D

Explanation

Raised dots provide warning or attention cues, while parallel raised bars provide directional guidance. The plans showing those two tactile patterns are A and D. The diagonal decorative lines and ordinary square-grid pattern are not the standard warning/directional pair. Select A, D.
