GATE 2022 AR — Planning – Question 5

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 1 mark · Multiple choice

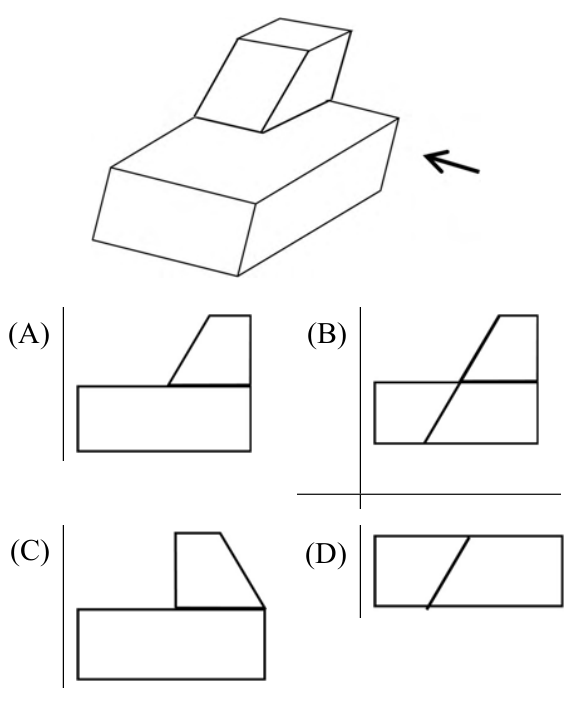

A block with a trapezoidal cross-section is placed over a block with rectangular cross section as shown above.
Which one of the following is the correct drawing of the view of the 3D object as viewed in the direction indicated by an arrow in the above figure?

Diagram for GATE 2022 AR — Planning question 5

Option A in the figure
Option B in the figure
Option C in the figure
Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

Viewed along the arrow, the lower block projects as an unbroken rectangle and the upper block has its sloping edge on the left. This is option A. B incorrectly continues a diagonal through the lower block; C reverses the sloping side; D omits the raised block’s silhouette and introduces an internal diagonal. The selected view must preserve both the outline and the visible edges.
