GATE 2021 EE – Question 34

Analog and Digital Electronics · Simple diode circuits: clipping, clamping, rectifiers · 1 mark · Numerical answer

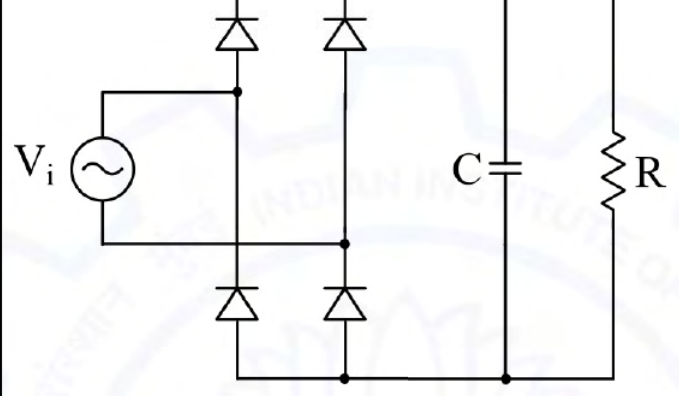

In the circuit shown, the input $V_i$ is a sinusoidal AC voltage having an RMS value of $230\text{ V}\pm20\%$. The worst-case peak-inverse voltage seen across any diode is ________ V. (Round off to 2 decimal places.)

Diagram for GATE 2021 EE question 34

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 389 to 391

Explanation

In a capacitor-filtered bridge rectifier each diode must block the peak of the input voltage. The worst case is the highest input: $230\times1.2\times\sqrt2=390.3$ V.
