GATE 2021 EE – Question 49

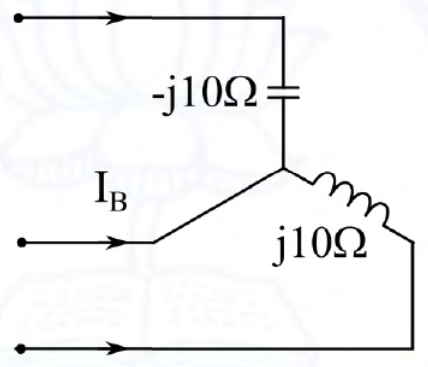

A three-phase balanced voltage is applied to the load shown. The phase sequence is RYB. The ratio $\dfrac{|I_B|}{|I_R|}$ is ________.

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 1
Explanation
The load is connected between the lines through a capacitor of $-j10\ \Omega$ and an inductor of $j10\ \Omega$, which have equal and opposite reactance magnitudes. The resulting currents in lines R and B have equal magnitude, so the ratio is 1 (the official key is 1).
