GATE 2018 EE – Question 13

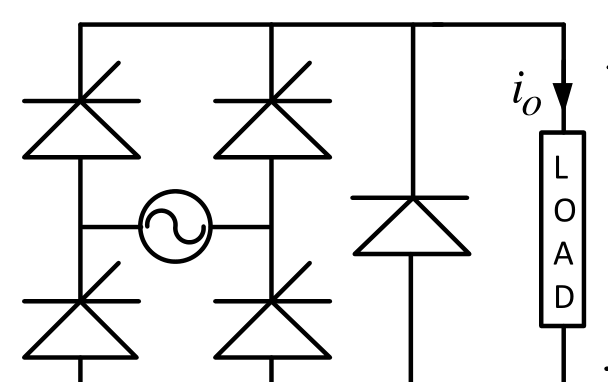

A single phase fully controlled rectifier is supplying a load with an anti-parallel diode as shown in the figure. All switches and diodes are ideal. Which one of the following is true for instantaneous load voltage and current?

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) $v_o\ge0$ & $i_o\ge0$
Explanation
The anti-parallel (freewheeling) diode clamps the output voltage at zero whenever it would go negative, so $v_o\ge0$. The load current flows only in the direction allowed by the thyristors and the diode, so $i_o\ge0$.
