GATE 2018 EE – Question 14

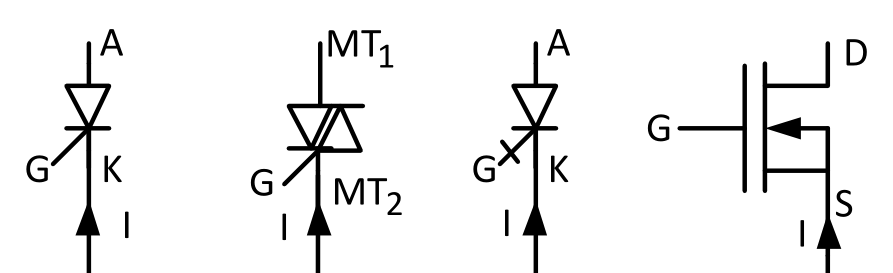

Four power semiconductor devices are shown in the figure along with their relevant terminals. The device(s) that can carry dc current continuously in the direction shown when gated appropriately is (are)

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) Triac, GTO
Explanation
The answer follows the official key: the triac and the GTO are the devices that can carry the DC current in the direction marked in the figure once gated appropriately.
